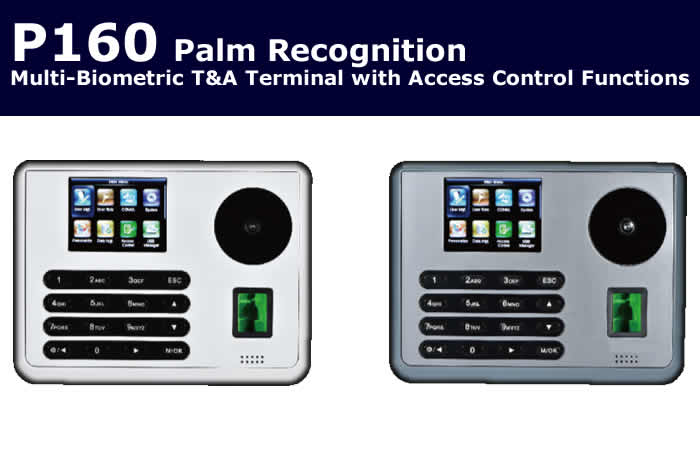

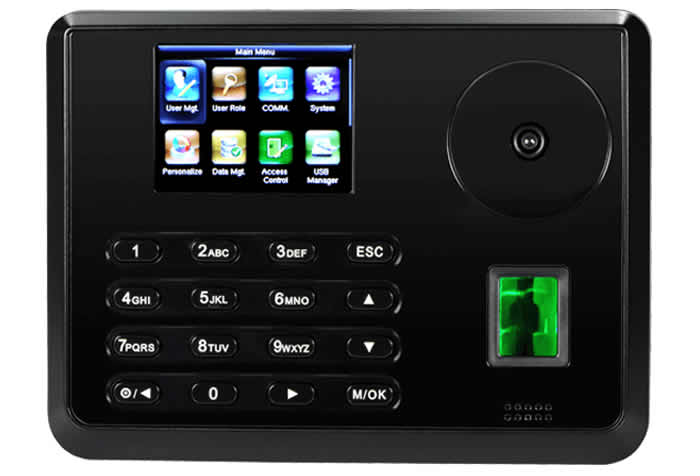

P160 - Palm Recognition and Fingerprint Reader Multi-Biometric T&A Terminal with Access Control Functions
|
|
P160 Palm/Fingerprint Multi Bio Recognition System

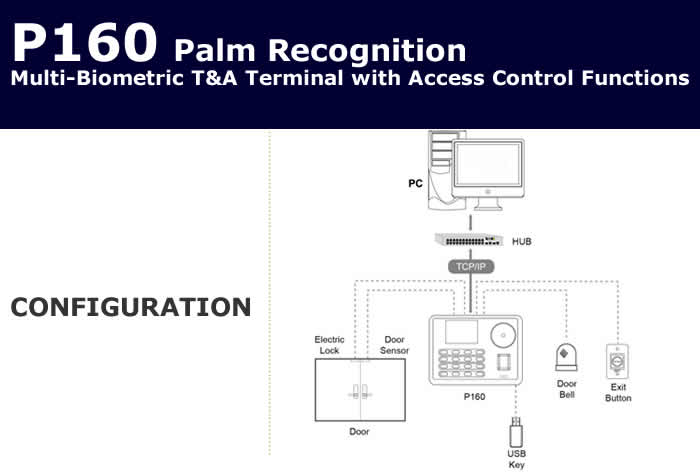

P160 is a multibiometric identification time & attendance and access control terminal, which can connect with third party electric lock, door sensor, and exit button etc.
With the latest palm/fingerprint identification algorithm and streamlined technology, it can hold 600 palm templates and up to 20,000 fingerprint templates without dividing into groups.
Communicating via Wi-Fi, TCP/IP, and USB host, it ensures a smooth connection and data transfer. Amazing verification speed and intuitive operation process make it popular. Elaborately designed and finely processed, it matches your slap-up office perfectly.
P160 Palm Reader Function:
- P160 Palm and Fingerprint Reader reads 600 Palms, 3,000 Fingerprints, 10,000 ID cards and 100,000 records.
- P160 Palm and Fingerprint Reader has an Elegant ergonomic design.
- P160 Palm and Fingerprint Reader has Easy installation.
- P160 Palm and Fingerprint Reader has TCP/IP, USB-Host and Wi-Fi communication
- P160 Palm and Fingerprint Reader has POE module/ 3G module/ High (general) level access control module/Battery module/ Printer
- P160 Palm and Fingerprint Reader has Verification speed less than 1 second
- P160 Palm and Fingerprint Reader has Professional Palm and fingerprints identification algorithm
P160 Palm and Fingerprint Reader SPECIFICATIONS:
Technical Specifications |
Display |
2.8-inch TFT Color Display |
Palm Reading Capacity |
600 (Standard) |
Fingerprint Reading Capacity |
3,000 |
ID Card Capacity |
10,000 (Optional) |
Logs Capacity |
100,000 |
Communication |
TCP/IP, USB-Host, Wi-Fi(Optional) |
Standard Functions |
Automatic Status Switch, Self-Service Query, Work Code, T9 Input, 9 Digit User
ID, DST, Scheduled-bell,SMS,RS232 Printer
AC module 1:Exit Button, Door Lock, Alarm,12V OUT,AUX IN |
Optional Function |
ID Card, MIFARE Card
AC module 2: Exit Button, Door Lock, Alarm,12V OUT, AUX IN, Door Sensor, RS485,
Wiegand IN/OUT.
POE, 3G, Battery Module, ADMS |
Power Supply |
12V 1.5A |
Verification Speed |
≤1 sec |
Operating Temperature |
0 - 45 °C |
Operating Humidity |
20% - 80% |

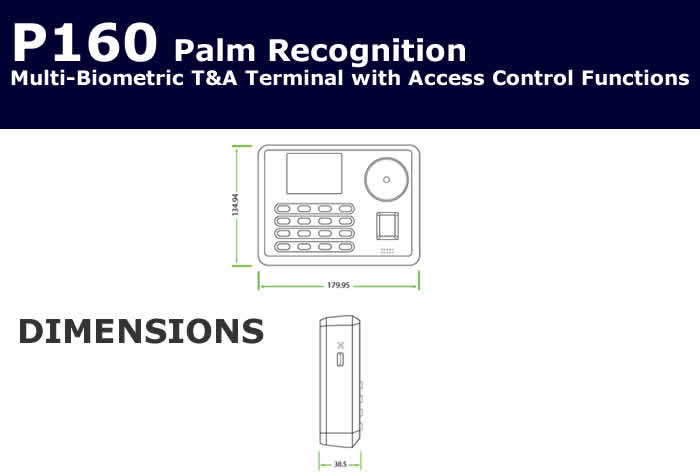

Dimensions |
179.95 x 134.94 x 38.5 mm |
|
