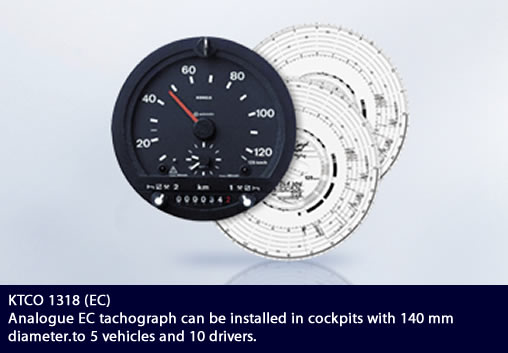

KTCO 1318 (EC)
Analogue EC Tachograph can be installed in cockpits with its 140 mm diameter.

This modular tachograph complies with EU directive 3821/85. Also available in a non-EU version (according to 57a of the German StVZO, and for overseas markets).

Features

Registration on diagram charts, data includes speed and distance travelled, driving time, work time and breaks, as well as RPM registration (optional)
Speed and RPM (optional) is displayed in analogue form. Automatic recording of driving time
Optical data interface for data transmission
Different front panels (round, rectangular)
Back lighting with luminescent pointers

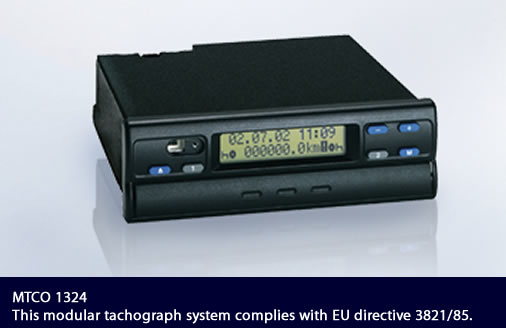

MTCO 1324

The MTCO 1324 modular EC tachograph sets standards in performance, technology and design thanks to its separate display and recording elements. Speed and distance travelled, as well as driver-related data such as driving, working and rest times, are recorded on conventional, tamper proof paper charts.

Features

Automatic warnings Multifunctional LCD display with 2 x 16 characters.
Recording unit for ISO 7736 radio-sized slot
Battery-buffered real-time clock with automatic change over to summer time
Automatic positioning of recording chart to match the time of day

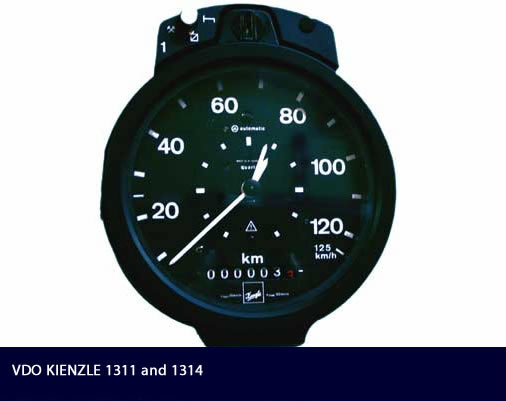

VDO KIENZLE 1311 AND 1314

Compact design combined with microprocessor-controlled processing of measured values and analog recording are the main characteristics of the analogue tachograph 1311 / 1314.

Optimally used, it provides valuable data for both driver and fleet as a part of an integrated information system.

Optimized for scheduling, improved profitability and reduced operating costs are only a few examples of its efficiency

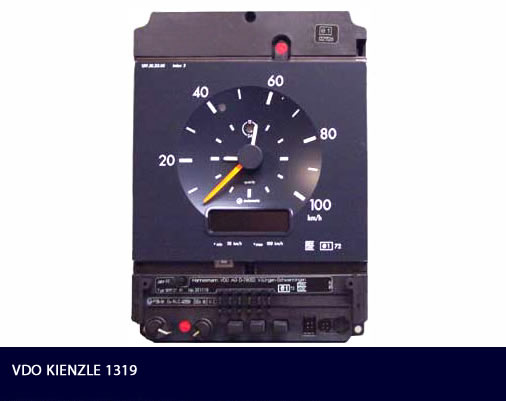

VDO KIENZLE 1319

The VDO Kienzle 1319 sets new standards in respect of performance, technology and design by using separate indications and recordings.

Speed indication is measured by means of the electonic speedometer or using an approved display which is functional and readily integrated into the instrument cluster.

VDO Tachograph Chart

Our VDO tachograph chart is an advanced storage medium, precisely manufactured to DIN ISO 9001.

Three simple methods of chart analysis can be used: optical, electronic and microscopic.

Features

Tachograph Charts: records the data for speed and distance travelled, as well as driver’s work and rest times (up to 2MB)
Electronic Analysis: evaluates the driver’s charts using our KISCAN analysis software
Optical Analysis: provides a complete overview of all important data (i.e., speed, time groups, distance travelled).
Microscopic Analysis: provides objective analysis of data, permissible in court.

We also supply Tachograph Charts & All related accessories, we have qualified technicians who can fit & calibrate Tachographs.
