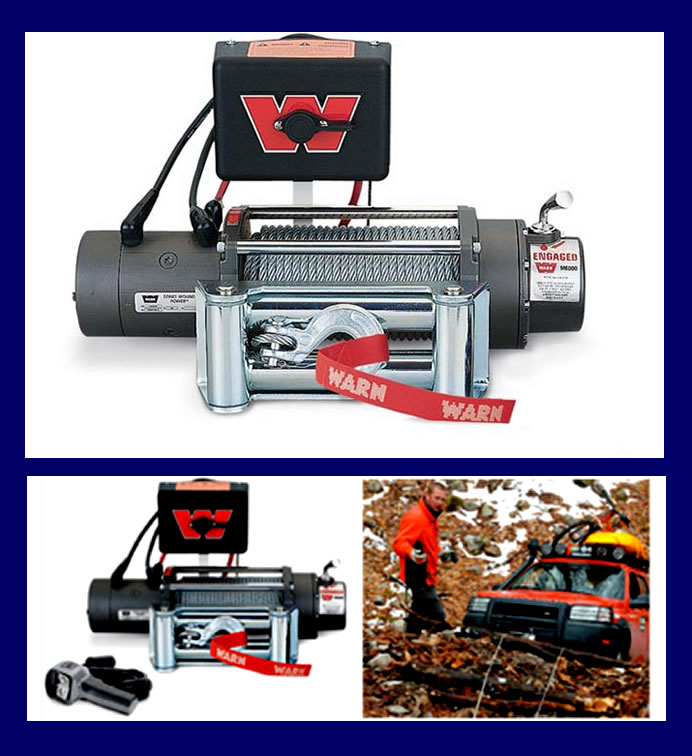

PN M6000 - 12V / PN M6000 - 24V

THE PERFECT WINCH FOR LIGHT SPORT UTILITY VEHICLES
This is our medium-to-light duty winch. But it's no weakling. Designed to be compact, its 4.8-hp Series Wound motor can still pull 6,000 lbs, making it ideal for smaller vehicles with big ideas. Comes standard with a 24m x 8mm cable

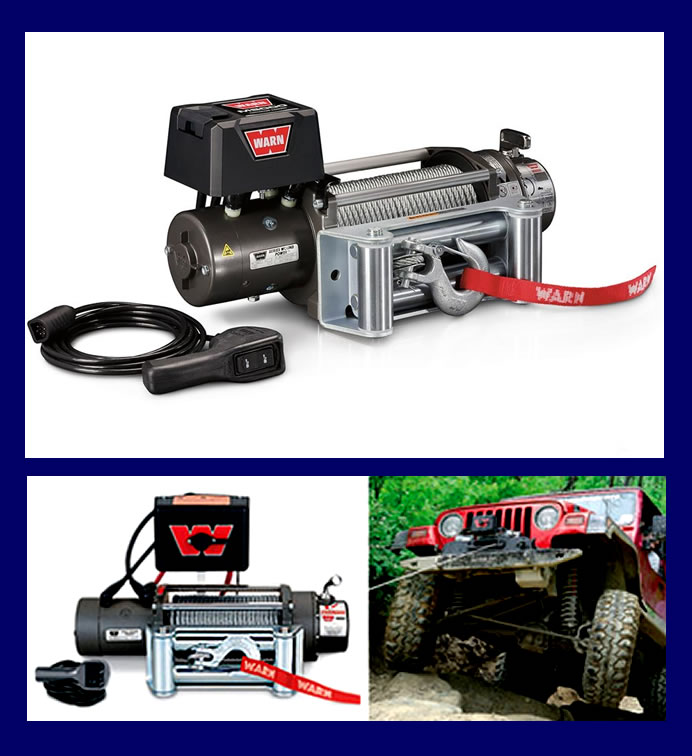

PN M8000 - 12V / PN M8000 - 24V

COMPACT, TOUGH AND RELIABLE
An outstanding value for bakkies and sport utility vehicles. The M8000, with its 4.8-hp Series Wound motor and 3-stage planetary geartrain, packs 8,000 lbs. of pulling power to get the job done. Available with 30m of wire rope and roller fairlead. Pulls a fast 2.4m. per minute at rated load.

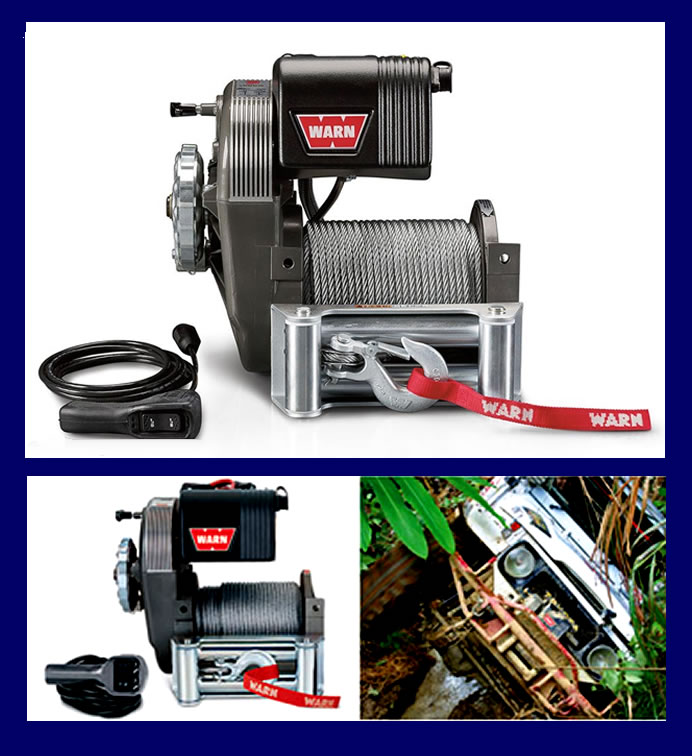

PN M8274 - 12V / PN M8274 - 24V

FASTEST LINE SPEED, LONGEST WIRE ROPE, LEGENDARY PERFORMANCE
Loved by off-roaders who compete, it's our fastest winch. A load free retrieval speed for the M8274-50 is 22.24M per minute, and that's not all. At 46m x 8mm cable, it also has a very long line capacity. Its unique spur-gear drive train and upright design are totally rugged. Its braking system delivers smooth operation with superior heat dissipation. Roller fairlead, remote control on 3.7m lead, free spool clutch and battery cables are included.

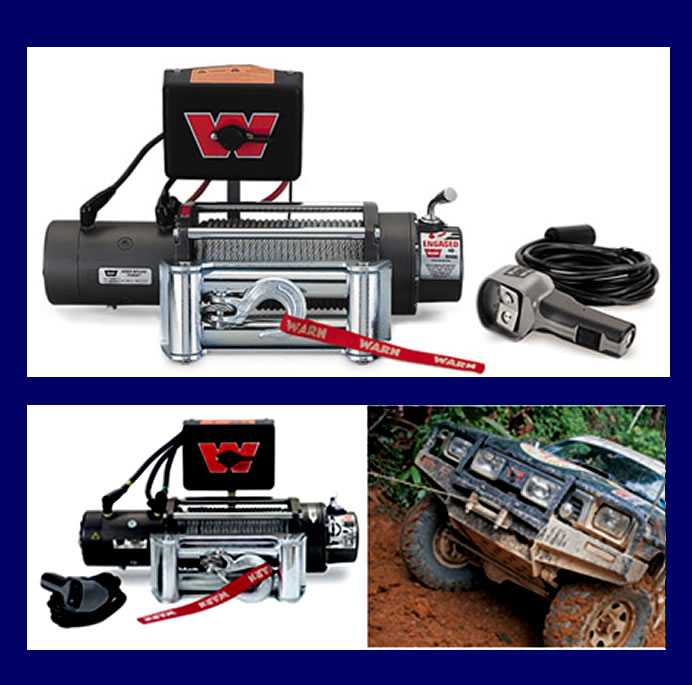

PN M9000 - 12V / PN M9000 - 24V

LONG TIME BEST SELLING XD9000 WINCH
A long-time best seller, the XD9000 is fast and reliable in real trail conditions. The compact body and separate control pack lets it work effectively in very tight spaces. It uses the 4.6-hp Series Wound motor and three-stage planetary gearing offered on most of our winches, so torque and line speed are outstanding.

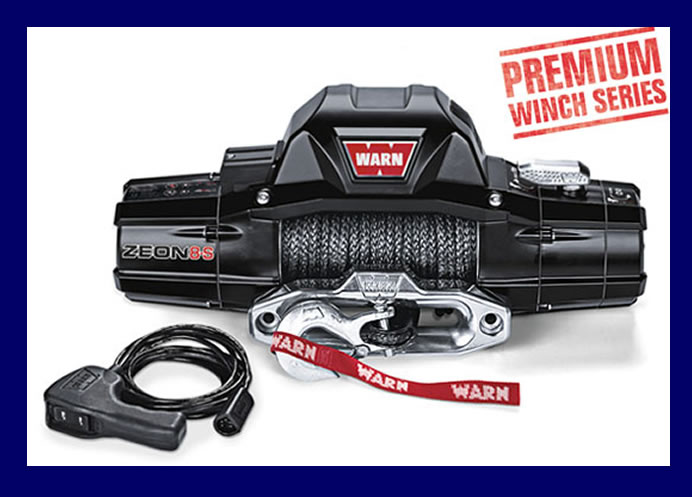

PN: Z8000-12V

Don't let the good looks fool you. We've packed the ZEON 8 winch with all the performance features off-roaders said they needed most. From a heat-dissipating break down to an incredibly smooth planetary gear train, this winch is ready to hit the trail. The 8,000 lb. pulling capacity, combined with a fast line speed make this winch the perfect choice for Jeep and SUV trail rigs.

Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)

Winch Dimensions:
Integrated configuration:
615.9mm L x 181.6mm D x 267.1mm H

Low-profile configuration:
615.9mm L x 181.6mm D x 199.02mm H

Mounting Bolt Pattern: 254mm x 114.3mm

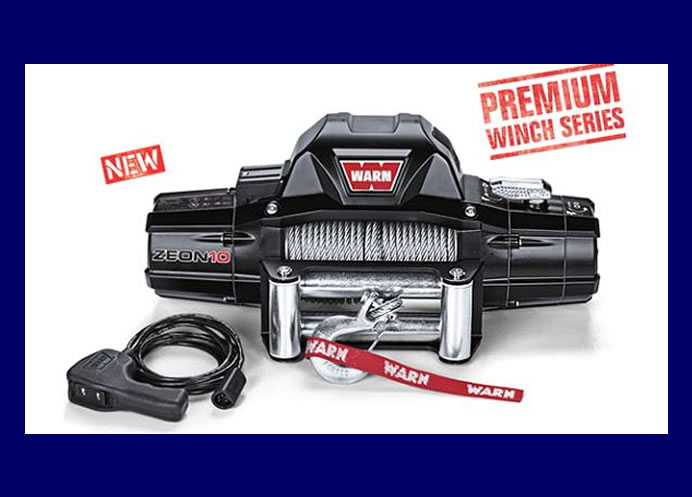

Jeep, Truck & SUV Winches: ZEON 10

10,000 lbs. of cutting-edge pulling muscle
Choose your way to conquer the terrain. The ZEON 10 is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 lbs. single-line pulling capacity and, well, you've got a workhorse unit you can trust for years to come.

*Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit).

Winch Dimensions:
Integrated configuration:
615.9mm L x 181.6mm D x 267.1mm H

Low-profile configuration:
615.9mm L x 181.6mm D x 199.02mm H

Mounting Bolt Pattern: 254mm x 114.3mm

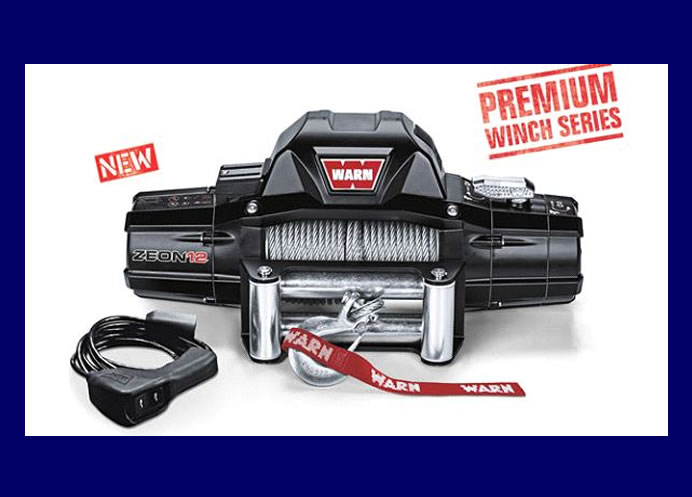

PN: Z12000-12V

The WARN ZEON 12 is the new face of winching. Bolt one on, and you'll be ready for anything.

A top choice for those with heavily-loaded off-road vehicles, the ZEON 12 features innovative design, increased performance and durability, steel rope, and a hefty 12,000 lb. single-line pulling capacity.

The ZEON 12 is a pulling machine you can rely on to rescue you-or your buddies, from nearly anything.

* Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)

Winch Dimensions:
Integrated configuration:
615.9mm L x 181.6mm D x 267.1mm H

Low-profile configuration:
615.9mm L x 181.6mm D x 199.02mm H

Mounting Bolt Pattern: 254mm x 114.3mm

DOWNLOAD WARN WINCHES CATALOGUE
