![ammeter vdo gauges-banner](img/ammeter vdo gauges-banner.jpg)
|
![Ammeter vdo gauge 30amp](img/vdo_ammeter_gauge_30amp.jpg) |
|
Ammeter VDO Gauge - INTERNAL SHUNT
Suitable for most engines. Monitors Charge and battery condition. Voltage independent - suitable for 12 & 24V Ammeters with internal shunt are easily identified by the heavy duty threaded terminals. Heavy duty wire must be used for wiring. Illumination globe holder included.
For 24V application use globe 999-065-002
For 12V application use globe 999-065-001
Part no. |
Range |
Ø |
190-037-001C |
30-0-30AMP |
52mm |
190-037-002C |
60-0-60AMP |
52mm |
190-037-003C |
100-0-100AMP |
52mm |
|
|
|
Ammeter Gauge - Semi Truck (Electrical) |
![vdo ammeter gauge 60amp](img/vdo_ammeter_gauge_60amp.jpg) |
|
Semi Truck Electrical Cockpit Black Ammeter Gauge (60 Amp Gauge)
The electrical ammeter gauge allows you to easily read your amp level, while also adding a high quality finish to your dash. VDO gauges are known for their functionality, sturdiness, and style. Our vdo gauges are available in a black bezel, they are also covered by a 1 year warranty against defects so every trucker can feel confident their purchase is backed by a guarantee.
- Electrical Ammeter Gauge
- Contains a built in internal shunt, eliminating the need for an external shunt or additional wiring
- Cockpit Black features crisp black dials with matching bezels
- Features through dial lighting which allows details on the gauge to illuminate
- Included light diffusers allow the dial illumination colour to be changed to red or green
- Designed with high contrast clear white graphics & red pointers for an easy reading
- VDO patented movements provide smooth & accurate performance & long life dependability
- Standard 0.250" spade connectors simplify wiring
- Sold Individually
|
|
|
VDO Cockpit Fuel Level Gauge |
![VDO Cockpit Fuel Level Gauge](img/VDO Cockpit Fuel Level Gauge1.jpg) |
|

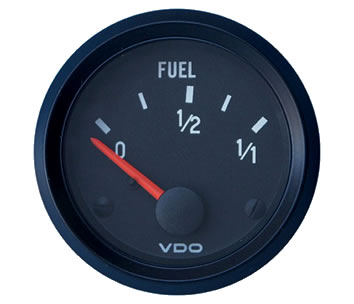

VDO COCKPIT FUEL LEVEL GAUGE DESCRIPTION:
A 52mm diameter fuel level gauge from VDO's vision range, featuring trioptic technology to give superb night time illumination and pointer lighting. As standard the illumination is white but can be changed to red or green by fitting one of the supplied diffusers. The black dial face displays the scale 0 - 1/2 - 1/1. The fuel level gauge is available to suit either float arm type sender units or dip tube types, both of which are supplied separately.
Suitable for use with petrol and diesel fuel. Illumination 12V and 24V included.
For tank units with 10-180 ohms resistance.
Without ISO symbol.
Part no. |
Range |
Ø |
Voltage |
301-030-001C |
0-1/1 |
52mm |
12V |
301-040-001C |
0-1/1 |
52mm |
24V |
|
|
|
VDO Cockpit Fuel Level Gauge |
![VDO Cockpit Fuel Level Gauge](img/VDO Cockpit Fuel Level Gauge2.jpg) |
|
Key Features - VDO Cockpit Fuel Level Gauge:
• |
Electrical operation |
• |
Excellent night time illumination |
• |
Supplied with colour changing diffusers |
• |
Sender unit supplied separately |
Additional Information
Voltage |
12V |
Diameter (Metric) |
52mm |
Max Range Outer Scale |
1/1 |
Input Type |
analog |
|
![oil pressure gauge banner](img/oil pressure gauge banner.jpg) |
![vdo oil pressure gauge 12V](img/vdo oil pressure gauge1.jpg) |
|
VDO Cockpit Black 5 bar Oil Pressure Gauge
VDO Cockpit Black 5 bar Oil Pressure Gauge, Use with VDO Sender, 12V & 24V
PRESSURE GAUGE - Electric Suitable for all vehicles and machines. Illumination 12V or 24V included. Note: Not recommended for petrol or water.
Part no. |
Range |
Ø |
Voltage |
350-030-016C |
0-500kPa |
52mm |
12V |
350-040-016C |
0-500kPa |
52mm |
24V |
|
|
|
VDO Cockpit Engine Oil Pressure Gauge |
![vdo Air Pressure Gauge](img/vdo Air Pressure gauge 01.jpg) |
|
VDO Cockpit Engine Oil Pressure Gauge - 10Bar Black 52mm
Suitable for most vehicles and machines. Can be used on most non-aggressive gases and liquids. Supplied with nut and cone for 3/16" PVC tubing.
Globe Holder not included. For 24V application use:
Part no. |
Range |
Ø |
Voltage |
350-030-017C |
0-1000kPa |
52mm |
12V |
350-040-017C |
0-1000kPa |
52mm |
24V |
|
|
|
Dual Air Pressure Gauge 10 bar, 60 mm. |
![vdo Air Pressure Gauge](img/Dual Air Pressure Gauge 10 bar 60 mm.jpg) |
|
Dual Air Pressure Gauge 10 bar, 60 mm
Dual Air Pressure Gauge 10 bar, 60 mm • 0-5V Default input. • RGB LED illumination (default illumination set to white) • Water resistant front & rear • Includes required harness
|
|
|
PRESSURE GAUGES, Transmission Oil Pressure |
![vdo oil pressure gauge](img/vdo Air Pressure gauge 00.jpg) |
|
PRESSURE GAUGES, Transmission Oil Pressure
VDO Cockpit Black 10 bar Oil Pressure gauge, use with VDO sender, 12V & 24V
Part no. |
Range |
Ø |
Voltage |
350-030-005C |
0-25 bar |
52mm |
12V |
350-040-005G |
0-25 bar |
52mm |
24V |
|
![hourmeter](img/hourmeter-title.jpg) |
![vdo hourmeter banner](img/vdo hourmeter banner.jpg) |
|
|
HOUR METER - NO MINUTE HAND |
![Cockpit International Hourmeter](img/Cockpit International Hourmeter.jpg) |
|
HOUR METER DESCRIPTION: No Minute Hand ad Black Bezel Gauge
52mm illuminated 24v VDO hourmeter
Suitable for all vehicles and machines
12v globe included
Range: 0 - 99999.9hrs
Part no. |
Range |
Ø |
Voltage |
331-810-012-001X |
0-99999.9hrs |
52mm |
12V / 24V |
|
|
|
Hourmeter Gauge - 0-99999.9 Hours |
![Cockpit International Hourmeter vdo gauge](img/Cockpit International Hourmeter vdo gauge.jpg) |
|
Hourmeter, 100K Hours, Non Illuminated, 12V, with minute hand
Cockpit International Hourmeter, 100K Hours, Non Illuminated, 12V, with minute hand
Suitable for all vehicles and machines Available with 360° minute hand sweep or as counters only
Part no. |
Range |
Ø |
Voltage |
331-810-012-002G |
0-99999.9hrs |
52mm |
12V / 24V |
|
|
|
HOURMETER - VIBRATION TYPE |
![hourmeter vibration type vdo](img/hourmeter-vibrationtype.jpg) |
|
For control of motors and engines as well as for recording the operating time of machinery not connected to an electric power supply but generating vibrations in service.
PART NO. |
DESCRIPTION |
D611008 |
52mm |
D611010 |
60mm |
D611012 |
52mm with anti-vibration mounting kit |
D761120 |
60mm bracket |
D761130 |
72mm bracket |
D761143 |
Vibration ring assembly |
|
|
